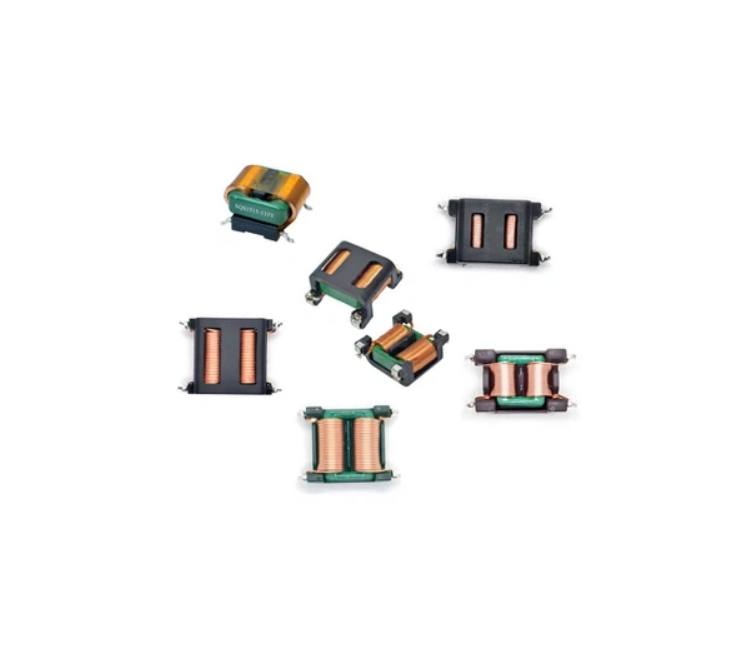

Engineered for modern power electronics, the SQS1212A Series represents a line of high-performance SMD Inductors designed to effectively suppress electromagnetic interference (EMI). These Low DCR Chokes utilize a square core construction and high-permeability material to deliver high impedance at low frequencies with minimal DC power loss. Their compact SMD flat profile and superior attenuation characteristics make them an ideal, cost-effective solution for enhancing EMC performance in space-constrained applications.
Space-Efficient & Reliable: Compact SMD footprint with a square core design minimizes board space usage and reduces magnetic leakage.
Superior EMI Suppression: High-permeability material combined with low stray capacitance ensures high impedance at low frequencies and provides excellent attenuation of common-mode noise.
High Current Capability: The Low DCR Choke design minimizes voltage drop and power loss, supporting high rated currents up to 3.0A for robust power handling.
Safety & Compliance: Construction features materials compliant with UL94V-0 flammability rating and offers high insulation resistance, meeting international safety standards. The series is also RoHS and REACH compliant.
Automated Production: Manufactured with automated processes for high consistency, reliability, and cost-effectiveness.
| Parameter | Details |
|---|---|
| Inductance Range | 5mH to 20mH (Test Condition: 1.0kHz, 0.25V) |
| DCR (Max) | 80mΩ to 220mΩ |
| Rated Current | 1.0A to 3.0A |
| Rated Voltage | 80Vac - 265Vac |
| Withstand Voltage | 1.0KVac for 2 seconds |
| Operating Temperature | -25°C to +125°C (including coil temperature rise) |
| Insulation Resistance | 100 MΩ Min. @ 500Vdc |
| Recommended Power Range | 60W - 150W |
These versatile Common Mode Chokes are ideally suited for noise filtering in a wide array of power supply circuits and electronic devices, including:
Switching Mode Power Supplies (SMPS): High-density designs for LCD TVs, Power Adapters, and Battery Chargers.
Consumer Electronics: Effective EMI filtering in Home Appliances and various digital devices.
Industrial Electronics: Noise suppression in control boards, motor drives, and industrial power systems.
Automotive Electronics: DC-DC converters and onboard chargers where reliable performance is critical.
